Big Iron Welding & Fabrication inc

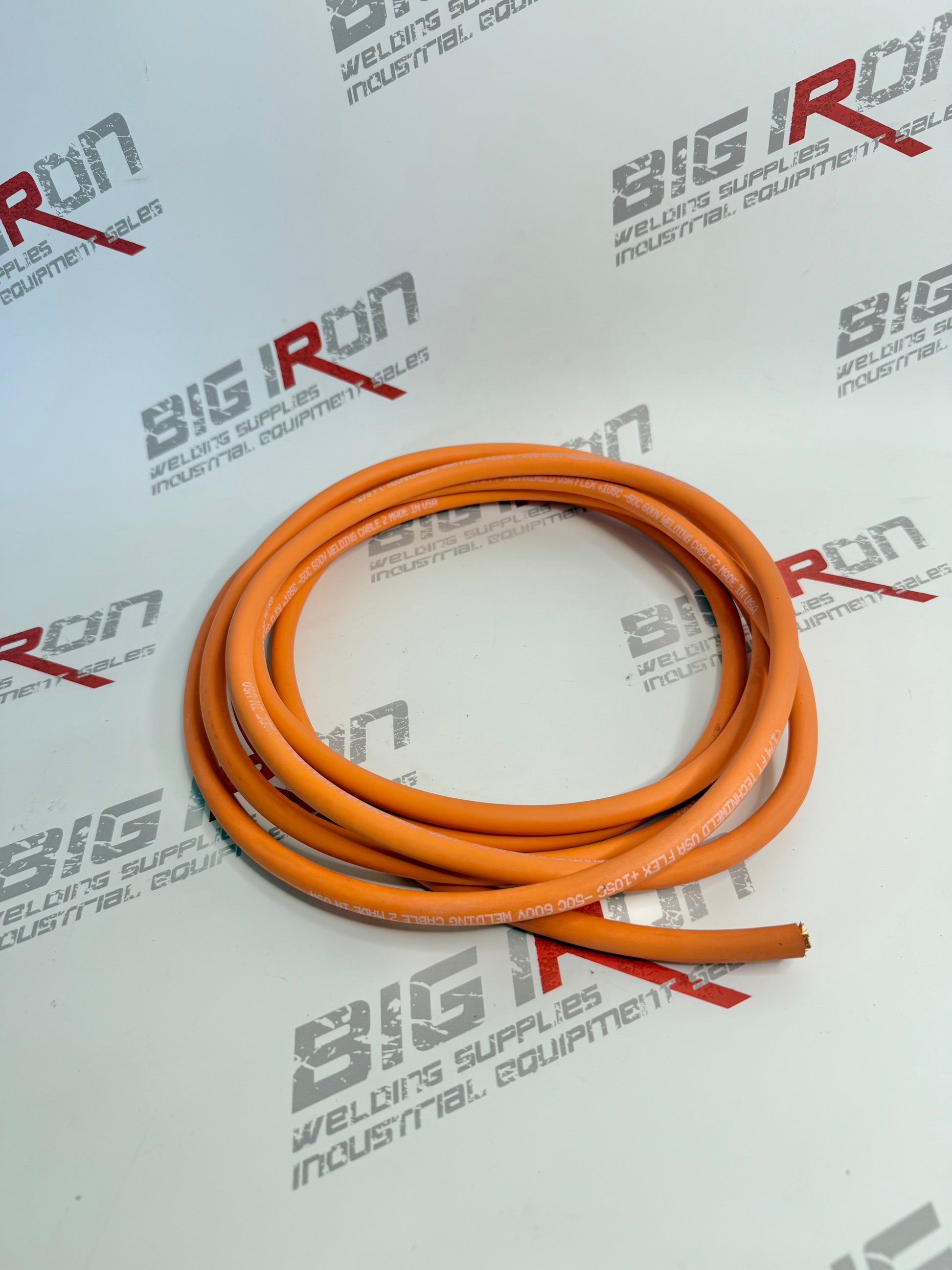

15’ #2 Flex Cable For Stinger Whip
15’ #2 Flex Cable For Stinger Whip
Regular price
$85.00 CAD
Regular price
Sale price
$85.00 CAD
Unit price
/
per
Couldn't load pickup availability
XTRweld SELECT Xtreme Flex Orange commercial welding cable
KEY FEATURES
- Rope-lay, bunch-stranded, ultra-flexible 34 or 36 AWG SAE copper conductor
- Jacketed with TPE compound
- Vibrant orange jacket
- Resistant to battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
Specifications
|
Item Dimensions |
|
Weight: 0.24 |
|
Other Specifications |
|
|
|
AWG Size |
#2 |
|
Voltage Rating |
600 V |
|
Conductor |
36 AWG SAE Copper |
|
Conductor Strands |
2,548 |
|
Nominal Insulation Thickness |
.060 Inch (1.52 MM) |
|
Nominal Outside Diameter (+Jacket) |
.428 Inch (10.87 MM) |
|
Approx LBS Per 1K' |
240 |
|
Temperature Range |
-50°C (-58°F) to 105°C (221°F) |
|
Country of Origin |
United States |
