STEP WEDGE 6"

Pipe spool fabrication and pipeline construction generally requires the use of multiple sections of pipe and fittings. It is common in the industry to join metallic steel and steel alloy pipe by welding. When fitting pipe, great care must be taken to ensure that the hi-lo is acceptable within the site specific weld procedure.

Common methods of ensuring proper gap between sections of pipe include the using a wedge, a gap rod, or a spacing ring. These devices are either placed between the pipe sections as they are brought together or they may be hammered or driven into a smaller gap to open the gap to a wider desired width. Generally, a wedge is used in combination with a gap rod that has a specific thickness. The Stepped Wedge & Gauge™ helps a green apprentice or even the most experienced pipe fitter become more efficient in virtually every fit-up imaginable.

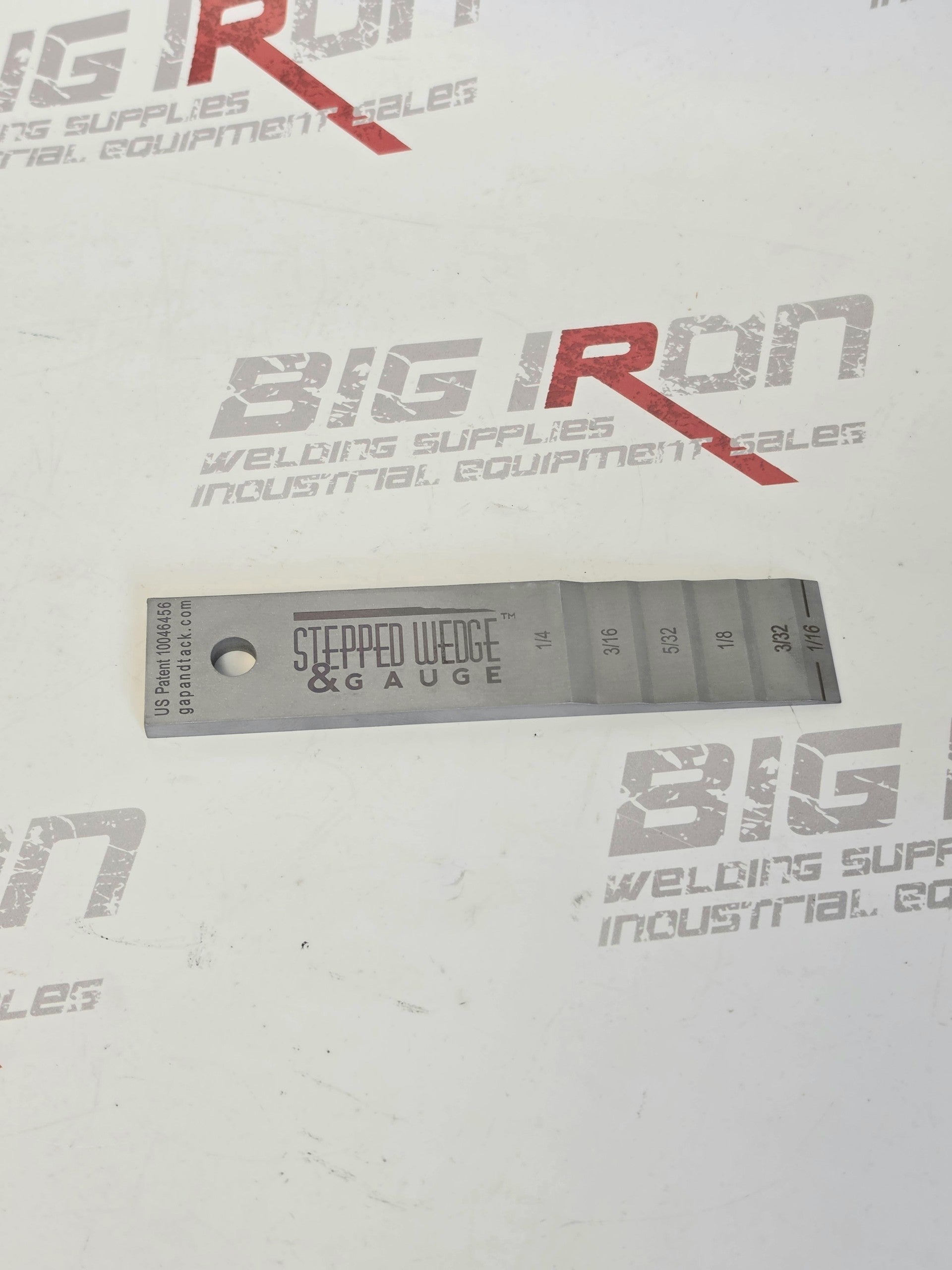

The Stepped Wedge & Gauge™ is made from stainless steel that has been tempered to increase its hardness and durability. At the business end of the tool is a knife edge which is stepped to match industry standard electrode thicknesses for gap spacing, specific to your weld procedure.

• Two tools in one. Wedge and Gauge.
• Pull or push for gap width adjustments.
• Allows full line of sight during fit-up.
• Unique hole allows fall protection lanyard and wedge extraction.
• Landings can be measured quickly and accurately.
• Can be used with a standard wedge or alone.
• Efficient and easy to use.
